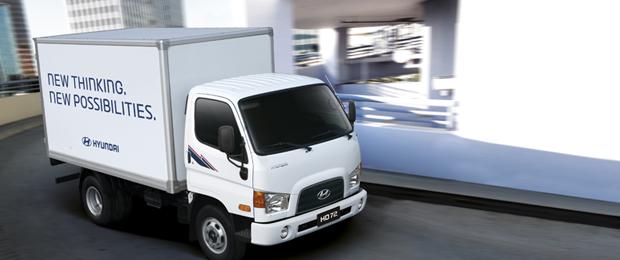

The Hyundai HD series bring a new dynamism and capability to the light and medium duty trucks. Tough but stylish, comfortable and dependable, the HD series offer the perfect vehicle for the demand of the trucking business.

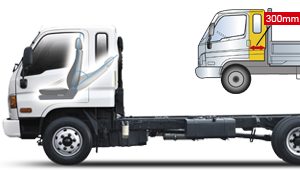

  • The extra spacious Super Cab

    300 mm of extra carrying space adds a new dimension of flexibility to this class. Whether for stowage, or as rest area, it adds extra operating potential, especially for long distance operations.

  • Tilting Cab

    Servicing and regular checks are easier than ever thanks to the 50-degree tilting cab which provides quick and easy access to the engine compartment.

  • Semi-Floating-Type Cab Suspension

    The cab rides on two oil cushioned rubber mounts. This design innovation is one of the keys to the soft, gentle ride.

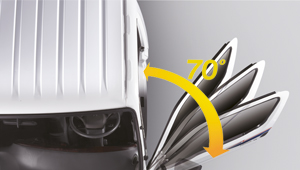

  • Wide Angle Doors

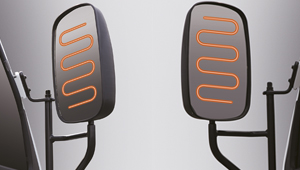

  • Heated Rear View Mirror

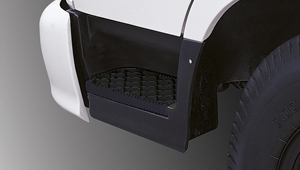

  • Safety Steps

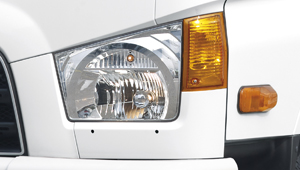

  • MFR Headlamps (Multi Focus Reflection)


  • Designed to Maximize
    Capability and Convenience

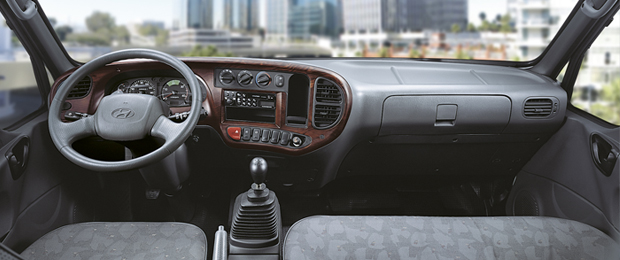

    The Hyundai HD series offer one of the safest and most ergonomic cabs available. It is not just comfortable, it works with the driver. For example, the curved instrument and switch panel layout means less reaching and more instinctive control. Minor controls, cab access, door and grab handles are optimally positioned, and there are ample interior illumination and stowage space. When it comes to driver comfort and convenience Hyundai is always right out there at the forefront.

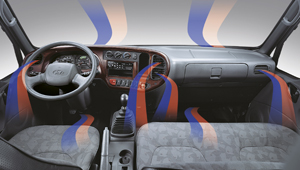

  • Air Control System

    Dial controls make setting the optimum heating and ventilation levels effortlessly simple. A powerful fan and multiple outlets mean that all round freshness is guaranteed. Air conditioning is also optionally available.

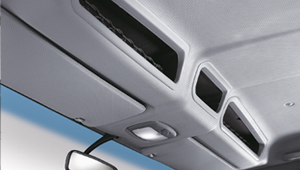

  • Overhead Storage

    The overhead console provides deep, secure and capacious stowage for sunglasses, papers, maps etc., without impeding free movement in the cab.

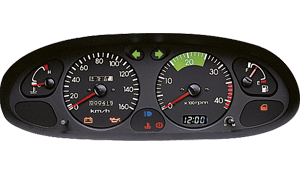

  • Instrument Panel

    Backlit, clear, and easy to read instruments, in the direct sightline of the driver, make day or night driving more relaxing.


  • Power and Reliability

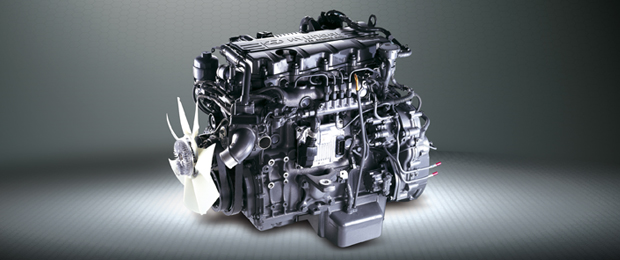

    The Hyundai D4GA diesel engine delivers the powerful performance, combined with exceptional reliability and durability, which makes Hyundai trucks so appealing.


    The New F-engine

    D4GA 150 ps / 2,500 rpm

    Max Torque : 59 kg∑m / 1,400 rpm

    Displacement : 3,933 cc

  • Extra-Strong Frame

    Heat-treated steel frame is reinforced with cross members and new bolt-type fasteners, which combine to improve resistance to frame twisting and flexing.

  • Air Cleaner
  • Fuse box
  • Auxiliary Starter
  • Tool box
  • Radiator reservoir tank
  • Service lamp circuit
  • Washer tank
  • Fuel filter


  • More Perfect,
    More Secure on the Job
    The Hyundai HD series trucks are developed for perfect safety. This serves as the foundation for rugged structure and extraordinary ride and handling. Further, the world class safety features from ABS integrated EBD brake system is equipped as standard. A full-size driverís airbag is also available for driverís safety.

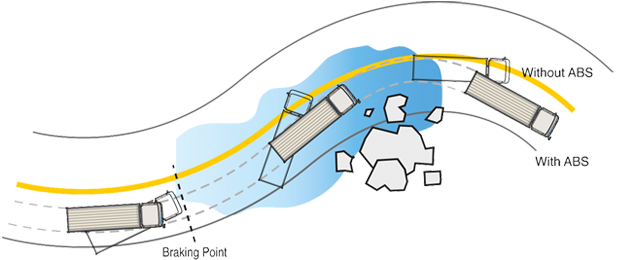

  • ABS with EBD Braking System

    The HD series offer extraordinary active safety and security by 4-channel A.B.S integrated Electronic Brakeforce Distribution (EBD) system. When the system senses the brake locking in adverse or slippery road conditions, it easily adjusts and controls the braking pressures to all wheels by hydraulic control, while increasing brake pressure in emergency automatically.



Tire labelling grade
Tire supplier Tire size Fuel Efficiency
Wet Grip
External Rolling Noise
*GRADE / Result (dB)
Hankook 195/75R16 10PR E C W2 / 70(dB)
205/75R17.5 10PR D C W1 / 67(dB)
8.5R17.5 12PR D C W1 / 69(dB)
8.5R17.5 12PR E C W2 / 75(dB)
Kumho 195/75R16 10PR C E W3 / 75(dB)
205/75R17.5 10PR D C W3 / 74(dB)
8.5R17.5 12PR E B W3 / 74(dB)
8.5R17.5 12PR E B W3 / 76(dB)
